AFS10000
Overview
The AFS10000 series is systemized using the AFO10000 generator, and can be configured from 1 to a maximum of 4 ozone outputs. Ozone Output can be configured in parallel for high flow rate and high concentration output. Additionally, each output can also operate independently.
Technical Specs
Type
Ozone System
Performance
About 350g/Nm3
Oxygen Flow rate
0.5 – 40LPM per 1 Ozone output
Feed Gas Grade
Oxygen: Grade 6 / Nitrogen: Grade 5 or better
Interface
RS485 / Analog remote control / Local control at front panel
Cooling water temperature
17℃ +,- 1 ℃
Cooling water Quality
Resistivity ≥ 50Kohm/cm with 100 micron filtration
Cooling water Flow
0.4 – 2.5 GPM / Per Generator (Depends on Cell Qty)
AC Power
3Ø 208V(+,- 10%), 80A (Depends on Cell & Generator Qty)
Frequency
50/60 Hz
Dimension
610 X 1165 X 1622(Short rack) / 610 X 1165 X 1900(Tall rack)
Compliance
CE, SEMI S2
Characteristic
N2 Free, Up to 14cells can be installed, Ozone Destructor install(optional)

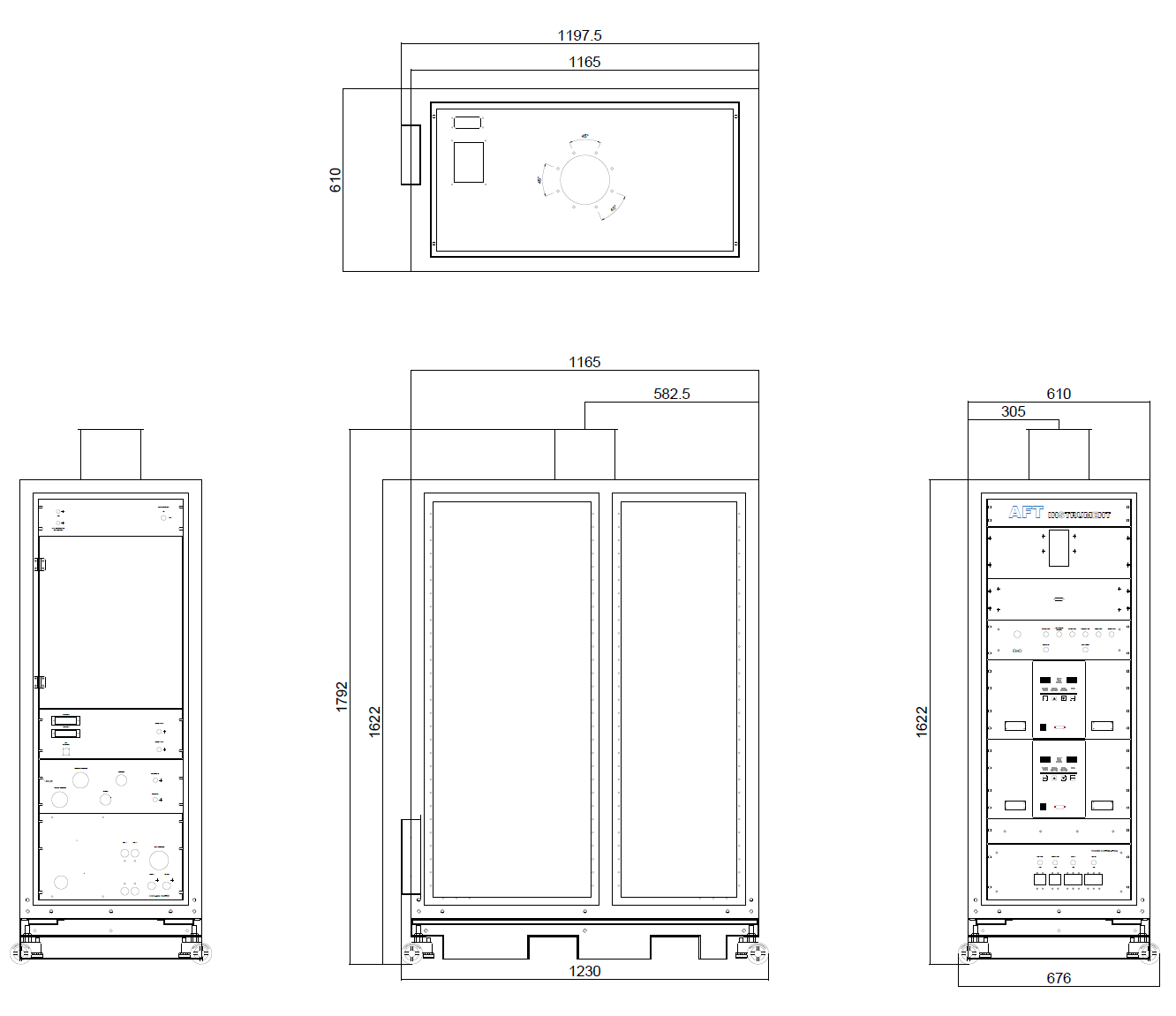

<Short rack>

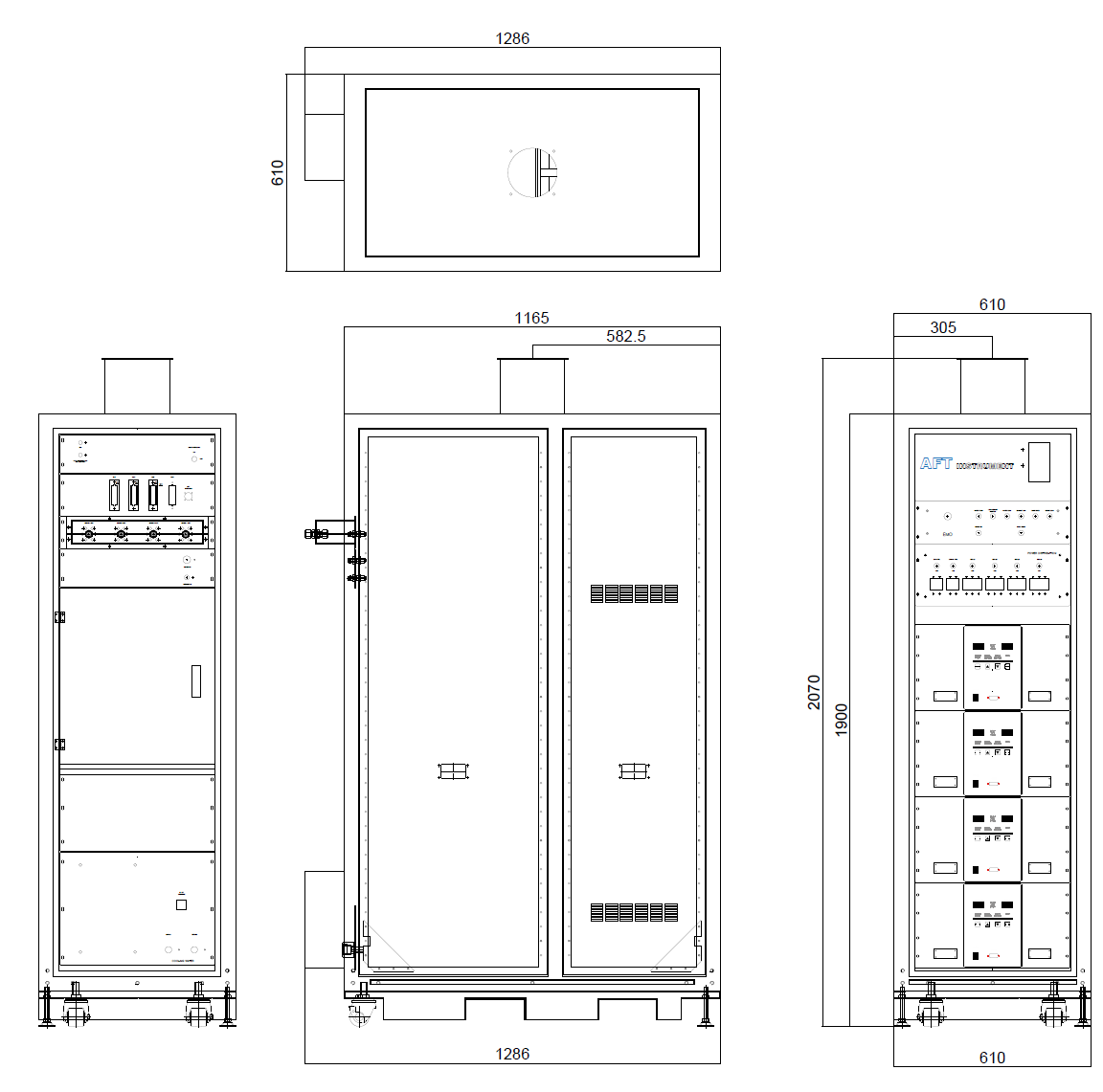

<Tall rack>
<Short rack>
