AFS9000
Overview
The AFS9000 series is systemized using the AFO9000(W) generator, and can be configured from 1 to a maximum of 4 ozone outputs, and each output can operate independently.
Technical Specs
Type
Ozone System
Performance
About 18 -185g/hr
Oxygen Flow rate
0.5 – 40LPM per 1 Ozone output
Feed Gas Grade
Oxygen: Grade 6 / Nitrogen: Grade 5 or better
Interface
RS485 / Analog remote control / Local control at front panel
Cooling water temperature
17℃ +,- 1 ℃
Cooling water Quality
Resistivity ≥ 50Kohm/cm with 100 micron filtration
Cooling water Flow
0.4 – 2.5 GPM / Per Generator (Depends on Cell Qty)
AC Power
3Ø 208V(+,- 10%), 80A (Depends on Cell & Generator Qty)
Frequency
50/60 Hz
Dimension
610 X 1165 X 1622(Short rack) / 610 X 1165 X 1900(Tall rack)
Compliance
CE, SEMI S2
Characteristic
N2 Free, Up to 14cells can be installed, Ozone Destructor install(optional)

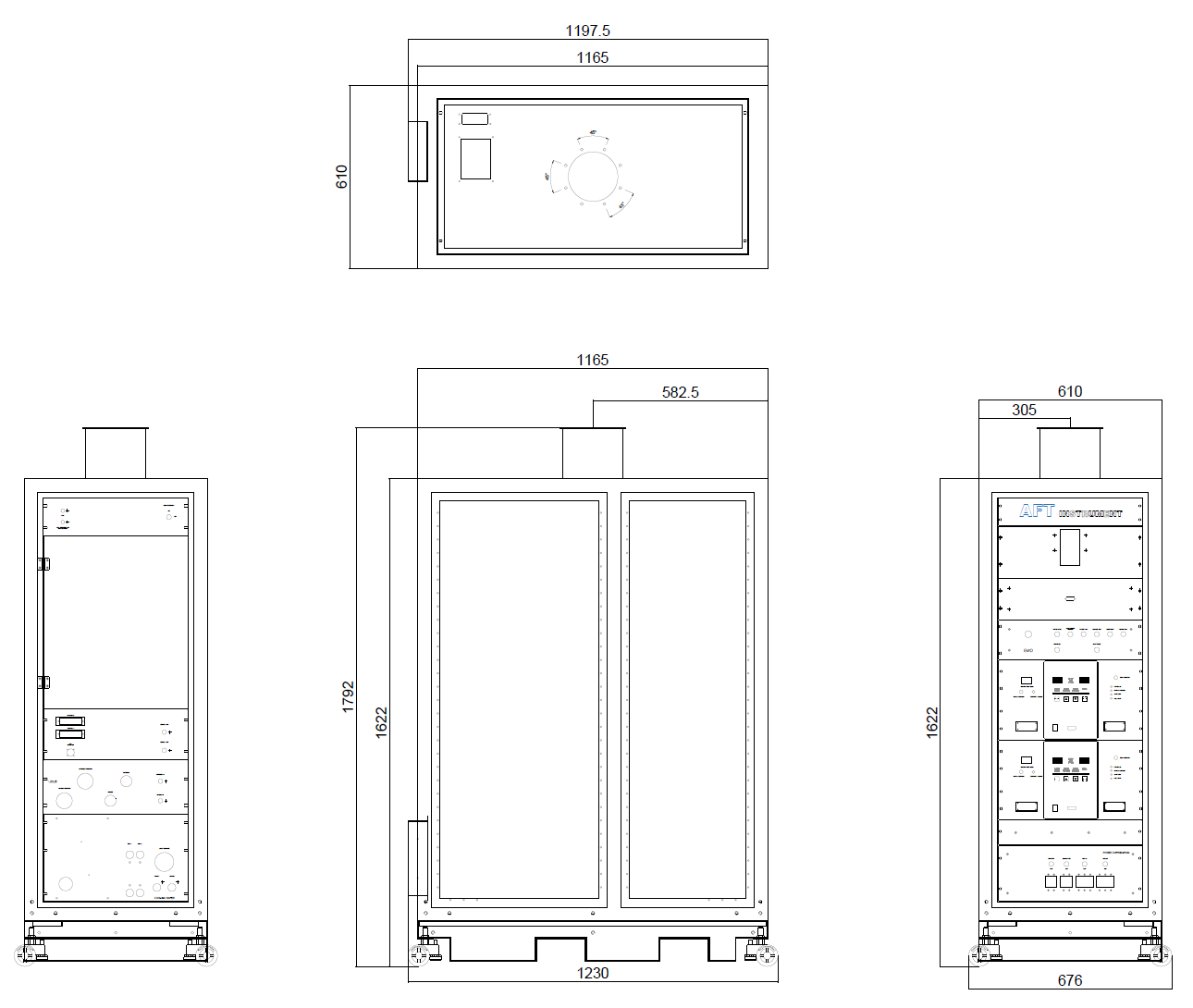

<Short rack>

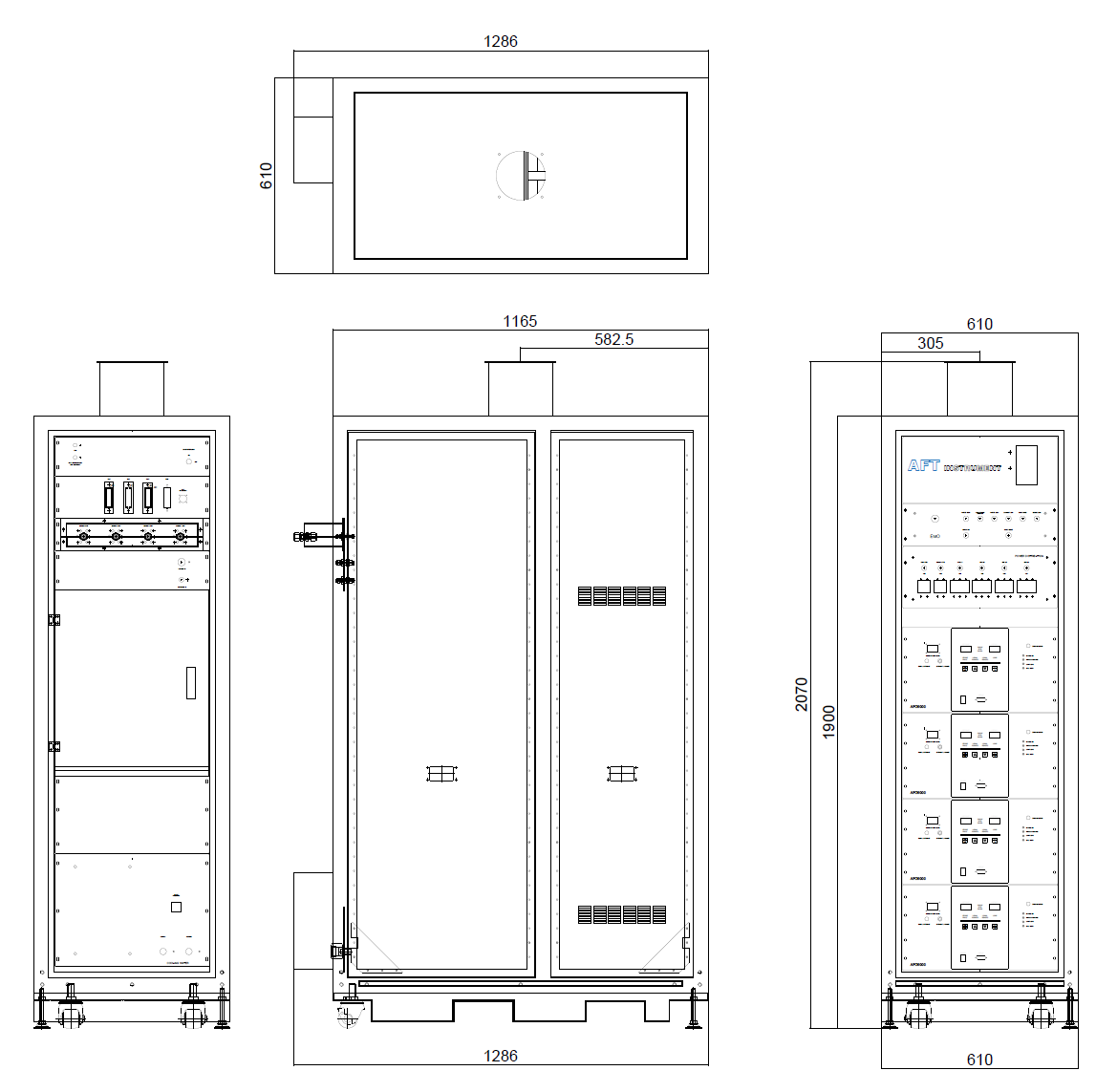

<Tall rack>
<Short rack>
